3200i Dual Action

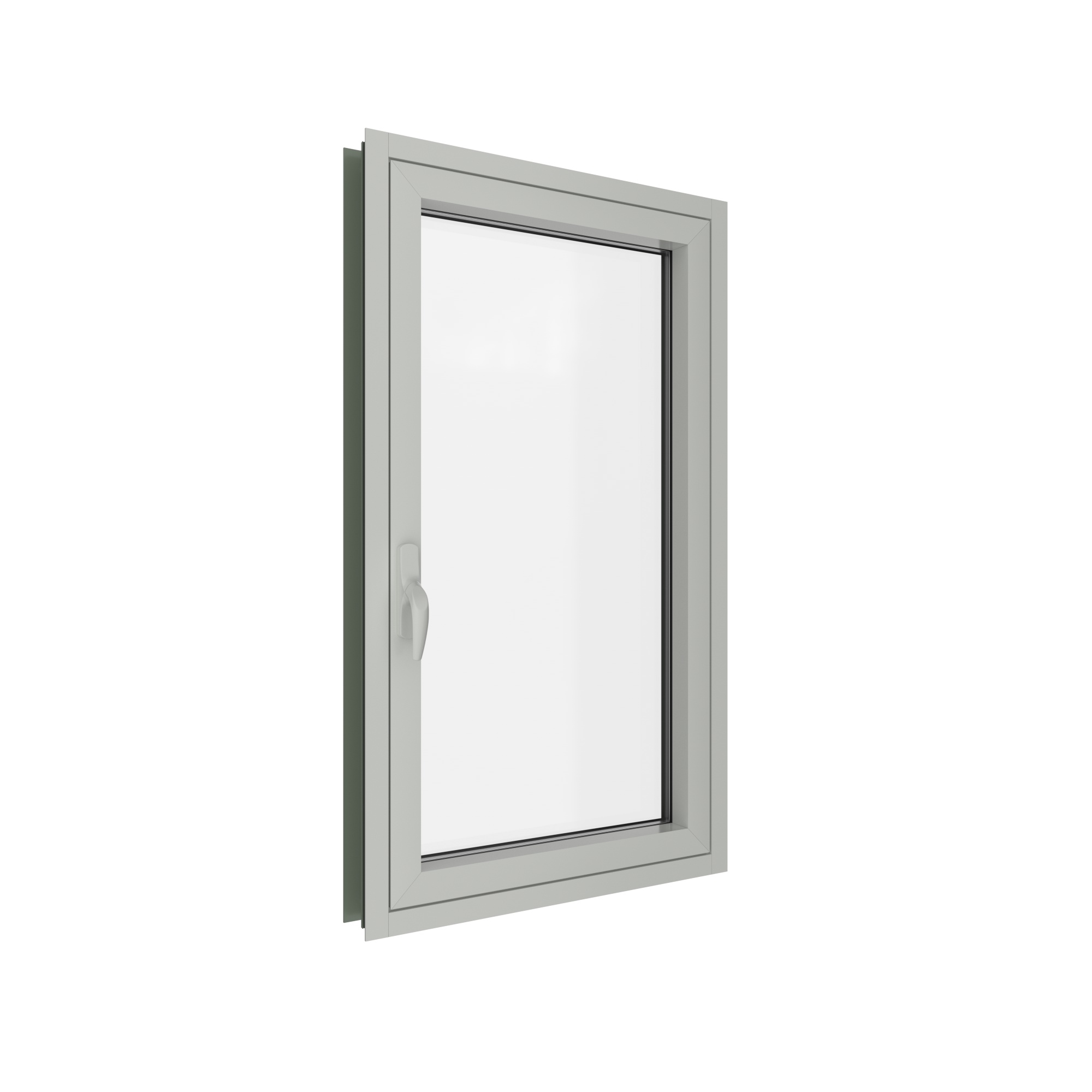

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Silicone structural glazing for maximum structural integrity
    • Equal sightline makes vents and fixed lites virtually indistinguishable from the exterior
    • Multi-point locks with advanced Eurogroove hardware provides inswing hopper operation for ventilation or inswing casement operation for safe and easy cleaning from the inside
    • Concealed heavy duty hinges allow for vents weighing up to 330 lbs.
    • Thermal strut thermal barrier at frame for enhanced performance and dual finish capability
    • Aesthetically pleasing flush vent design with beveled exterior glazing legs
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Extended length handles for reduced operating force in ADA applications
    • Between the glass muntin grids
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Key operated locks [NYCDOH approved where applicable]
    • Insect screens (fiberglass, aluminum or stainless-steel mesh)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Contact Us
Lets Get Started
Performance Data1
Series Operation AMAA
Rating 		Test Size
(inches) 		Air (cfm/ft2)
@ 6.24 psf 		Water
(psf) 		Design Pressure
(psf) 		Structural Overload
(psf) 		OITC U-Factor
(BTU/HR/FT2/F)
3200i Dual Action (Tilt & Turn) AW120 60 x 99 <0.01 20 120 180 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
47 x 59* 0.485 0.470 0.457 0.441 0.423 0.407 0.385 0.370
48 x 72 0.471 0.457 0.442 0.428 0.408 0.393 0.368 0.354
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
