3400i Dual Action

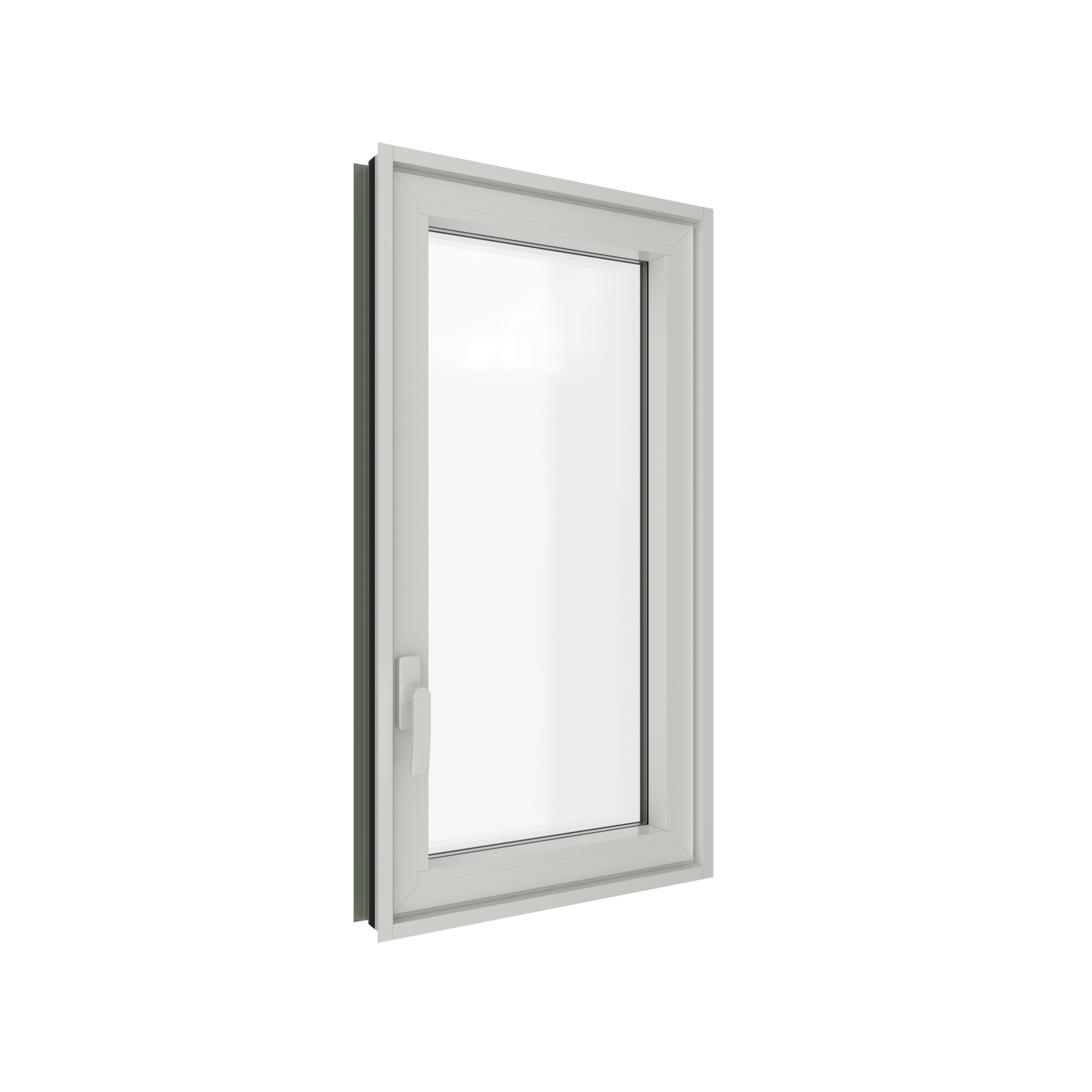

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Large 35 mm thermal struts provide exceptional U-values and dual finish capability
    • Multi-point locks with advanced Eurogroove hardware allows inswing hopper operation for ventilation or inswing casement operation for safe and easy cleaning from the inside
    • Concealed heavy duty hinges for vents weighing up to 375 lbs.
    • Flush vents with straight or beveled glazing legs for maximum design flexibility
    • Structural silicone glazing for maximum seal strength and water resistance
    • 3 ½” deep vents accommodate up to 3" glazing infill (2 5/8” with bevel)
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Dual or “triple” glazing with removable access panels (Allows for vandal resistant polycarbonate glazing and/or integral blinds)
    • Extended length handles for reduced operating force in ADA applications
    • Exterior applied or between the lites of dual glazing muntin grids
    • Insect screens (face applied or via integral track (inswing only) eliminating exposed clips)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Key operated limit arms (NYCDOH stamped where applicable) or custodial locks
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
3400i Dual Action (Tilt & Turn) AW-PG100 60 x 99 0.01 20 100 150 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
47 x 59* 0.443 0.436 0.417 0.410 0.386 0.379 0.348 0.341
48 x 72 0.433 0.427 0.406 0.400 0.374 0.368 0.333 0.328
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size

Typical Details

Select which format you would like to download:

PDF CAD

Coming Soon

This content has not been uploaded yet, but is coming soon. If you have any questions about this product please feel free to contact us.
