5500i Horizontal Sliding

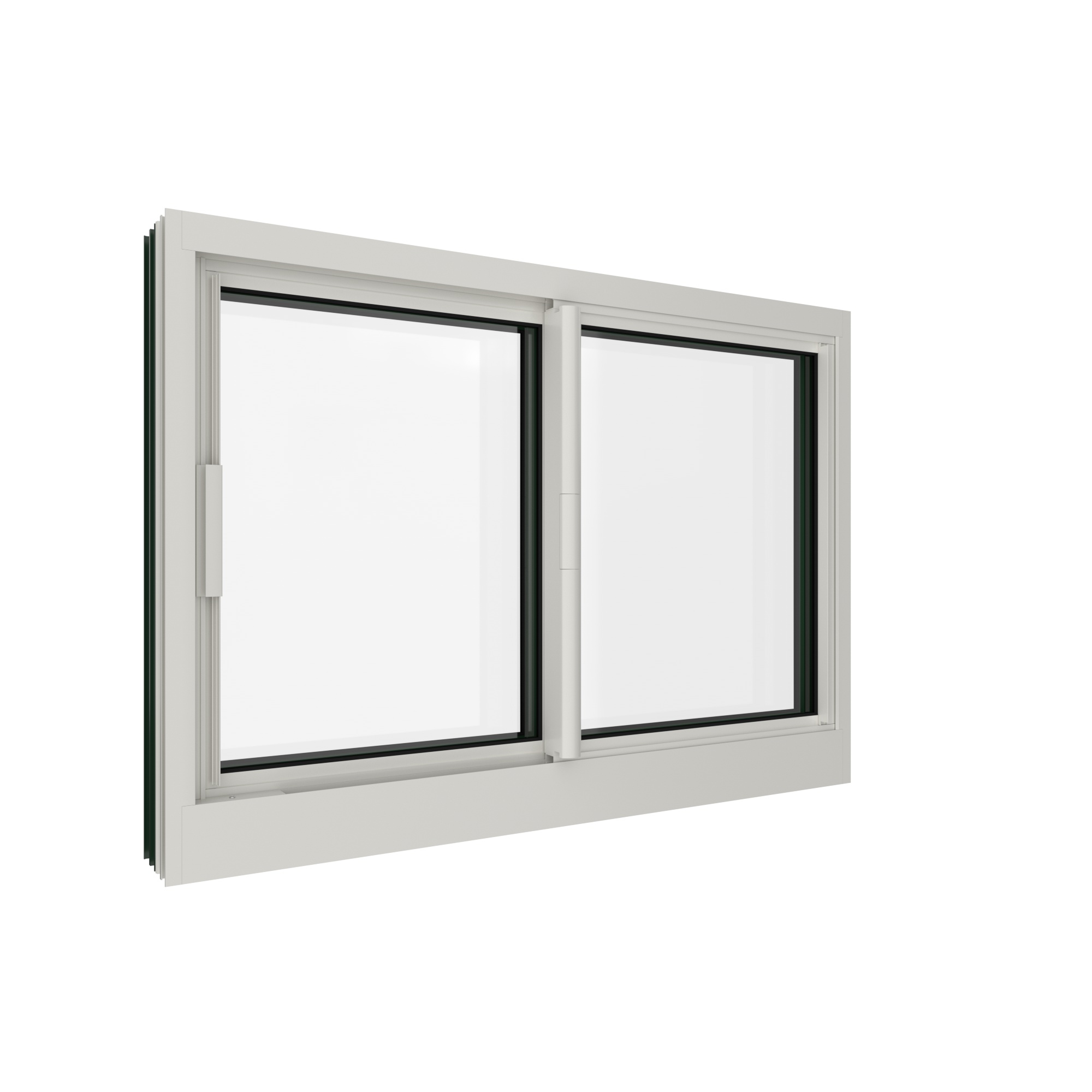

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Thermal strut thermal barrier for enhanced performance and dual finish capability
    • Dual window design provides unsurpassed sound control, excellent thermal performance and allows for indirect ventilation
    • Sash removable for cleaning by maintenance personnel
    • Wet glazed with structural silicone for maximum seal strength and water resistance
    • Integral spring-loaded automatic interior meeting rail lock, automatic aluminum jamb lock
    • Stainless steel ball bearing rollers on stainless steel covered raised sill track
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • ½” deep insulating glass at exterior or interior sash for even greater thermal and acoustical performance
    • Various glazing options including vandal resistant polycarbonate glazing
    • Exterior applied or true muntin grids
    • Full or half insect screens (fiberglass, aluminum or stainless-steel mesh)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Limit devices for restricted opening
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Contact Us
Lets Get Started
Performance Data1
Series Operation AMAA
Rating 		Test Size
(inches) 		Air (cfm/ft2)
@ 6.24 psf 		Water
(psf) 		Design Pressure
(psf) 		Structural Overload
(psf) 		OITC U-Factor
(BTU/HR/FT2/F)
5500i Double Slide (Dual) DW-HC60 96 x 78 0.03 12 60 90 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/NWWDA 101/I.S.2. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/None 0.33/None 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
59 x 47* 0.495 0.437 0.467 0.466 0.442 0.440 0.409 0.408
48 x 72 0.483 0.424 0.451 0.450 0.424 0.423 0.390 0.389
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
