920i Terrace Doors

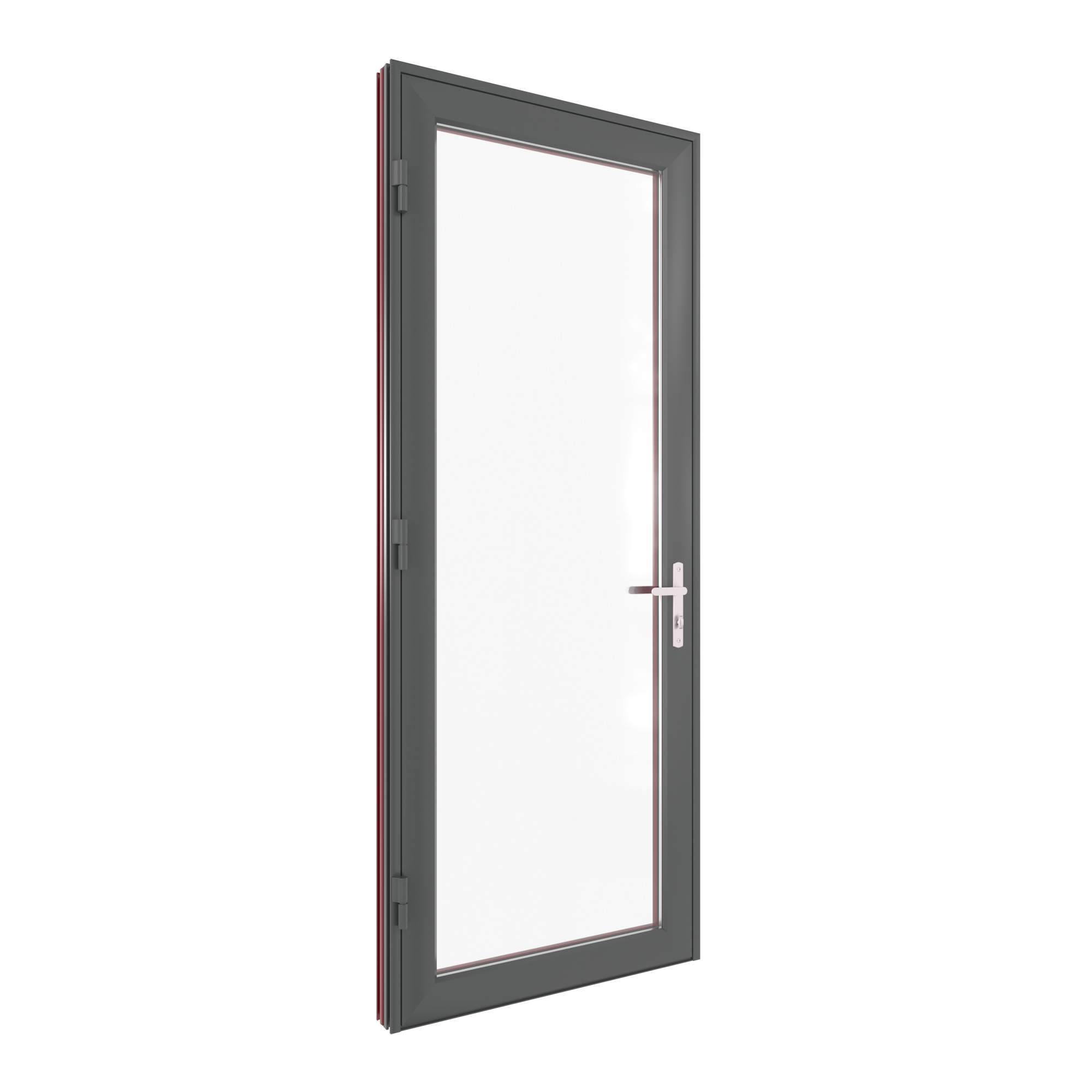

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Thermal strut thermal barrier for enhanced performance and dual finish capability
    • Straight or integral exterior beveled glazing legs for design flexibility
    • Wet glazed with structural silicone for maximum seal strength and water resistance
    • Adjustable hardware with multi-point locking and interior thumb turn dead bolt
    • Adjustable aluminum butt hinges finished to match doors
    • ADA compliant sill (requires suitable substrate design)
    • Single or twin (with integrated astragal) configurations using head/sill shoot bolts
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Dual glazing with removable access panels (Allows for vandal resistant polycarbonate glazing or 5/8” deep integral blinds)
    • Exterior applied or between the lites of dual glazing muntin grids
    • Exterior and/or interior key cylinders, surface applied door closers
    • Hurricane WIndborne Debris Impact Resistance (Large Missile)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
920i Outswing AW-PG100 48 x 96 0.02 20 100 150 Consult AWM See Below
920i Inswing AW-PG100 48 x 96 0.01 12 100 150 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Product Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
37 3/4 x 82 3/8 (Inswing) 0.491 0.476 0.469 0.454 0.443 0.427 0.405 0.393
37 3/4 x 82 3/8 (Outswing) 0.496 0.481 0.474 0.458 0.448 0.432 0.412 0.398
47 x 59 (fixed) 0.421 0.394 0.391 0.363 0.355 0.326 0.312 0.285
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
