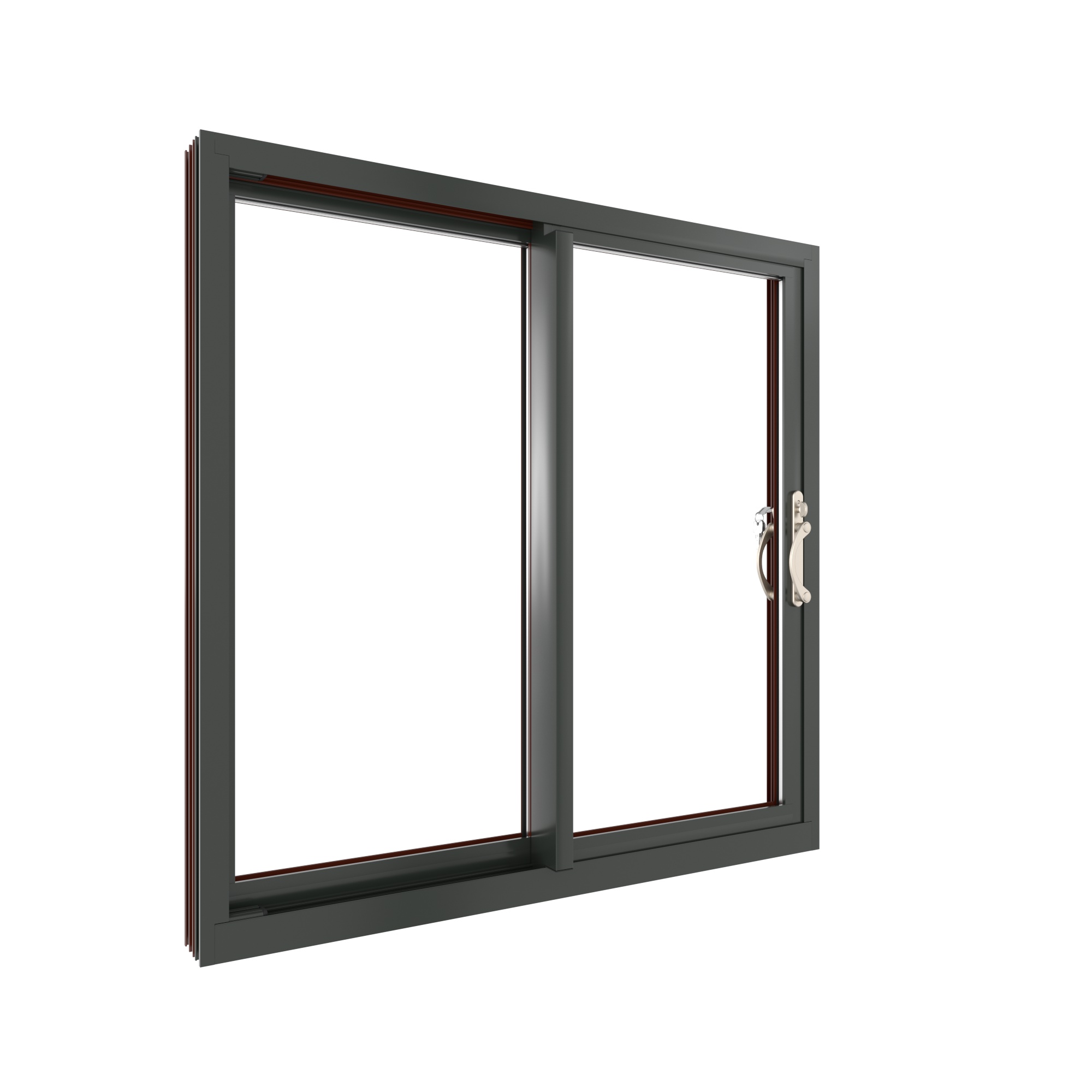

950i Terrace Doors

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Thermal strut thermal barrier for enhanced performance and dual finish capability
    • Stainless steel covered raised track and adjustable ball bearing rollers provide smooth operation
    • Heavy duty thumb-turn single-point stainless steel mortise lock and keeper
    • Single slide design available in 2, 3 or 4-lite configurations
    • Wet glazed with structural silicone for extreme seal strength and longevity
  • Optional Features
    • Dual glazing with removable access panels (allows for vandal resistant polycarbonate glazing or 5/8” deep integral blinds)
    • Exterior key locks
    • 15 psf sill for increased water resistance
    • Exterior applied or between the lites of dual glazing muntin grids
    • Heavy duty rolling insect screens (fiberglass, aluminum or stainless steel mesh)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
950i Sliding AW-PG75 123 x 95 0.13 12 (15) 75 112.5 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Door Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
79 x 79* 0.486 0.475 0.458 0.447 0.425 0.413 0.383 0.372
96 x 96 0.458 0.449 0.429 0.419 0.394 0.384 0.349 0.340
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
