975i Terrace Doors

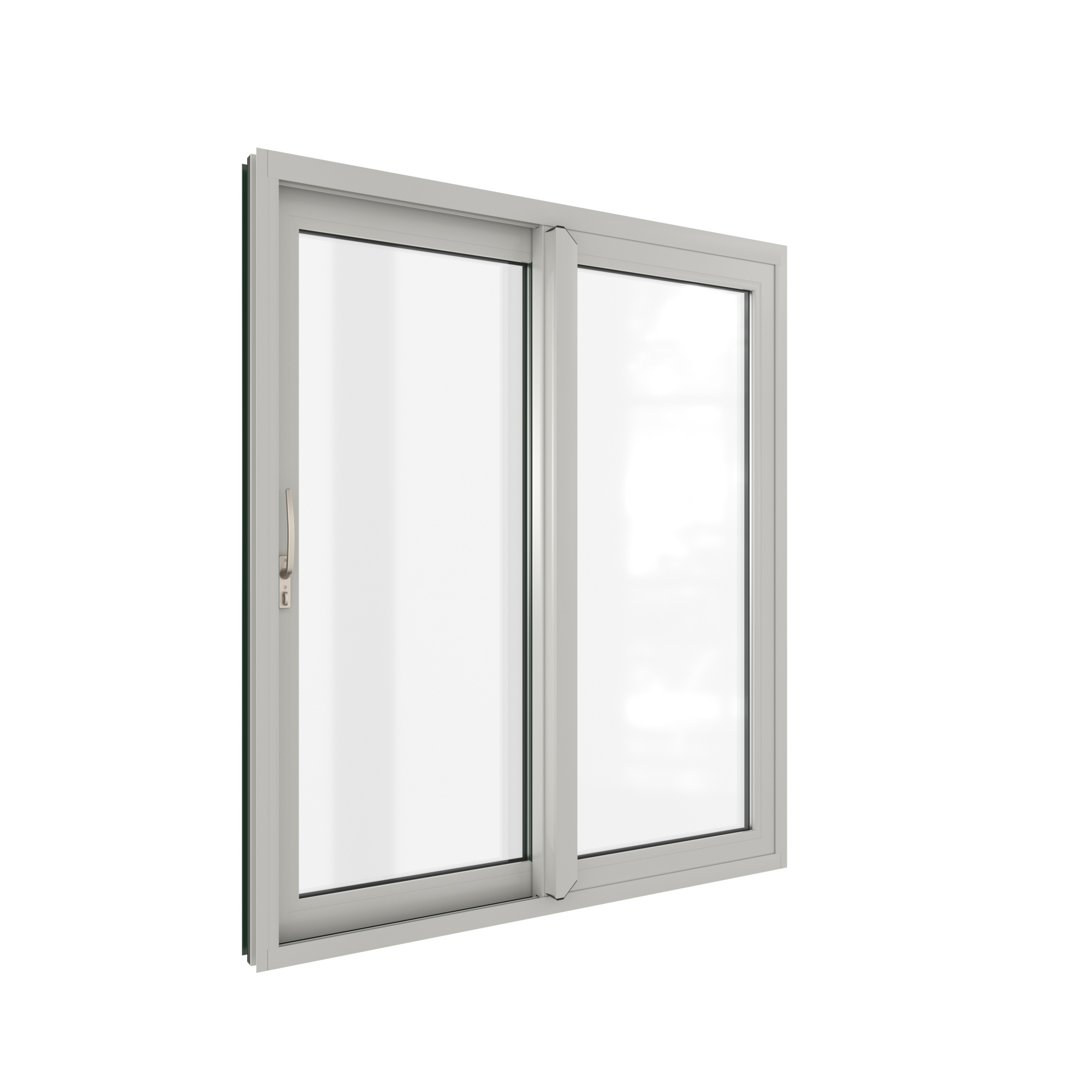

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Advanced European hardware allows for large door panels up to 600 pounds
    • Gaskets lift from contact during operation for relatively effortless panel movement
    • Low profile sill design minimizes obstruction while maintaining high water resistance
    • Concealed heavy duty multi-point locking system
    • Nylon coated stainless steel rollers for quiet & smooth operation
    • Single slide design available in 2, 3 or 4-lite configurations
    • Thermal strut thermal barrier for enhanced performance and dual finish capability
    • Wet glazed with structural silicone for extreme seal strength and longevity
  • Optional Features
    • Heavy duty roller allowing door panels up to 800 pounds
    • Interior thumb-turn to restrict handle operation
    • Exterior key locks
    • Exterior operating handle in lieu of recessed pull (requires interior thumb turn)
    • Heavy duty rolling insect screens (fiberglass, aluminum or stainless steel mesh)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
975i Lift & Slide AW-PG80 123 x 95 0.14 15 80 120 Consult AWM See Thermal
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Product Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
79 x 79* door 0.525 0.514 0.500 0.489 0.471 0.458 0.434 0.423
96 x 96 door 0.492 0.482 0.465 0.455 0.433 0.422 0.392 0.383
47 x 59* fixed 0.438 0.421 0.408 0.391 0.374 0.356 0.331 0.314
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
