3000i Projected

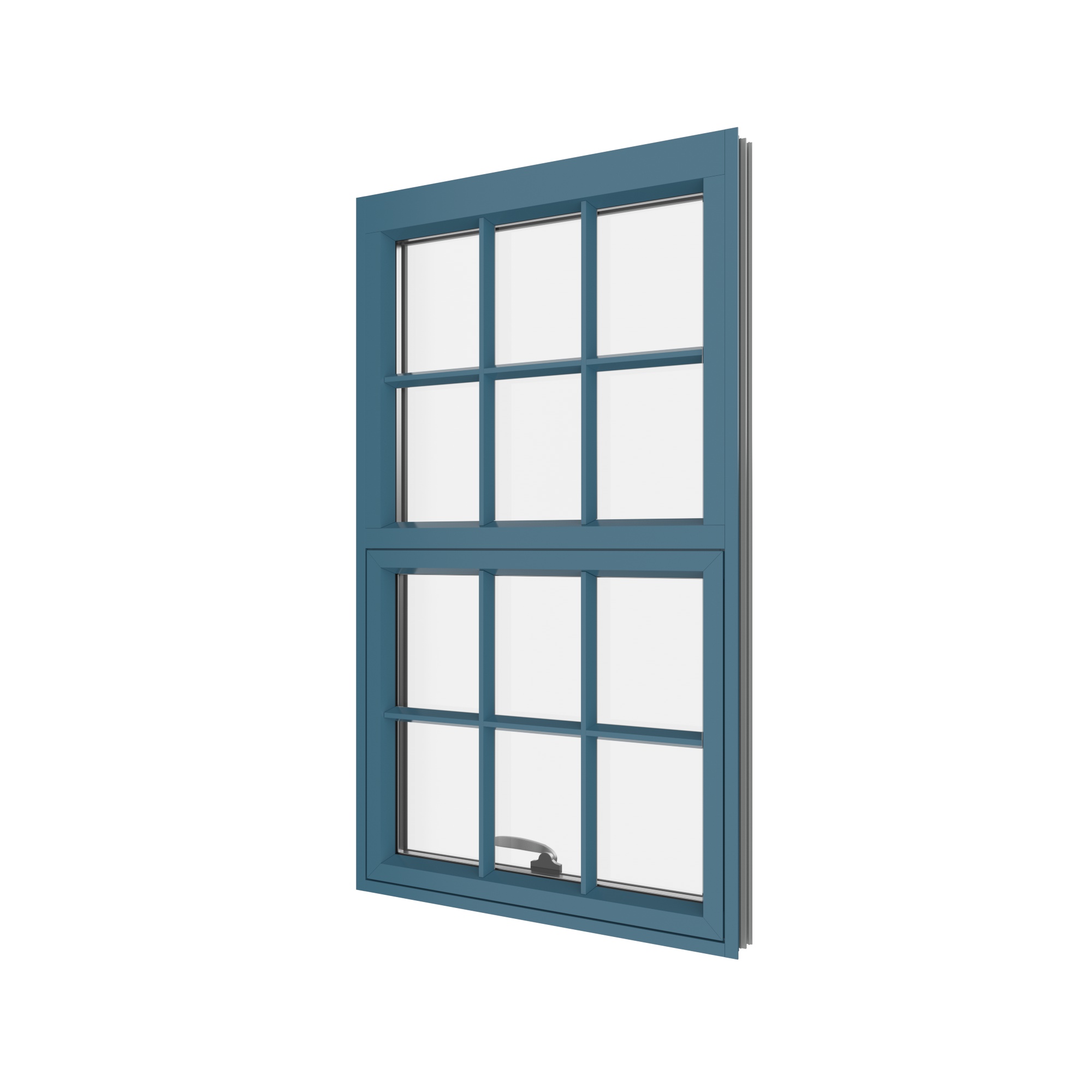

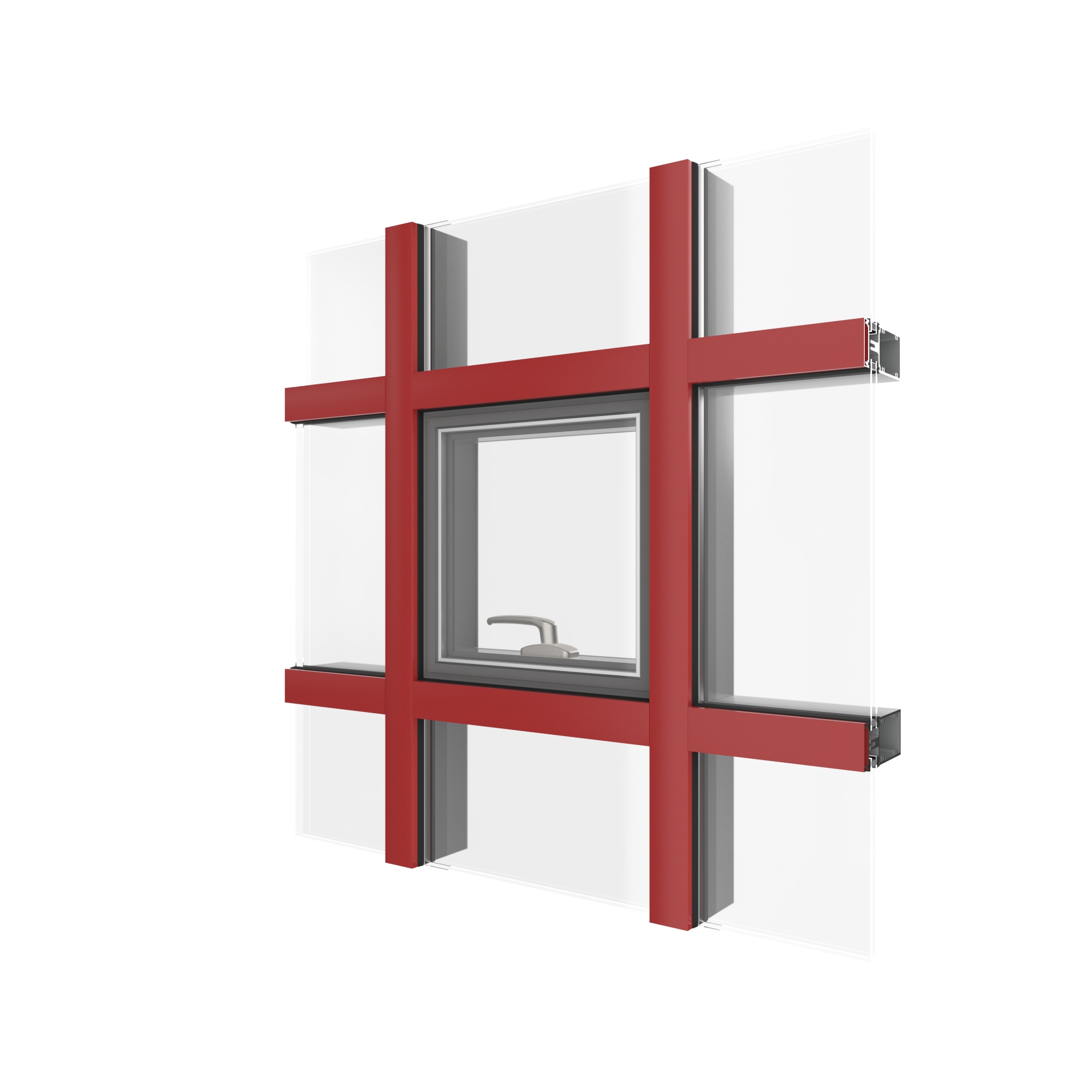

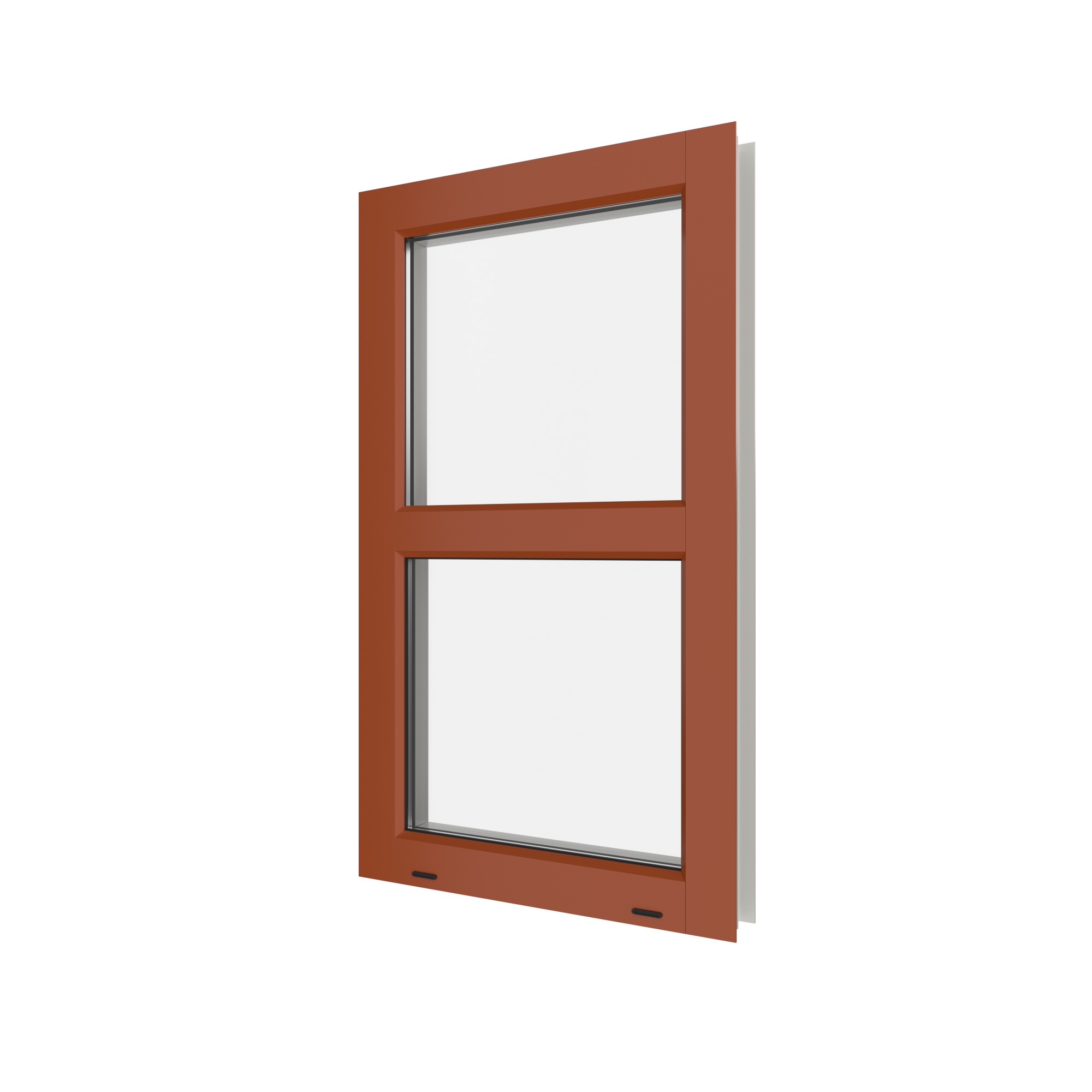

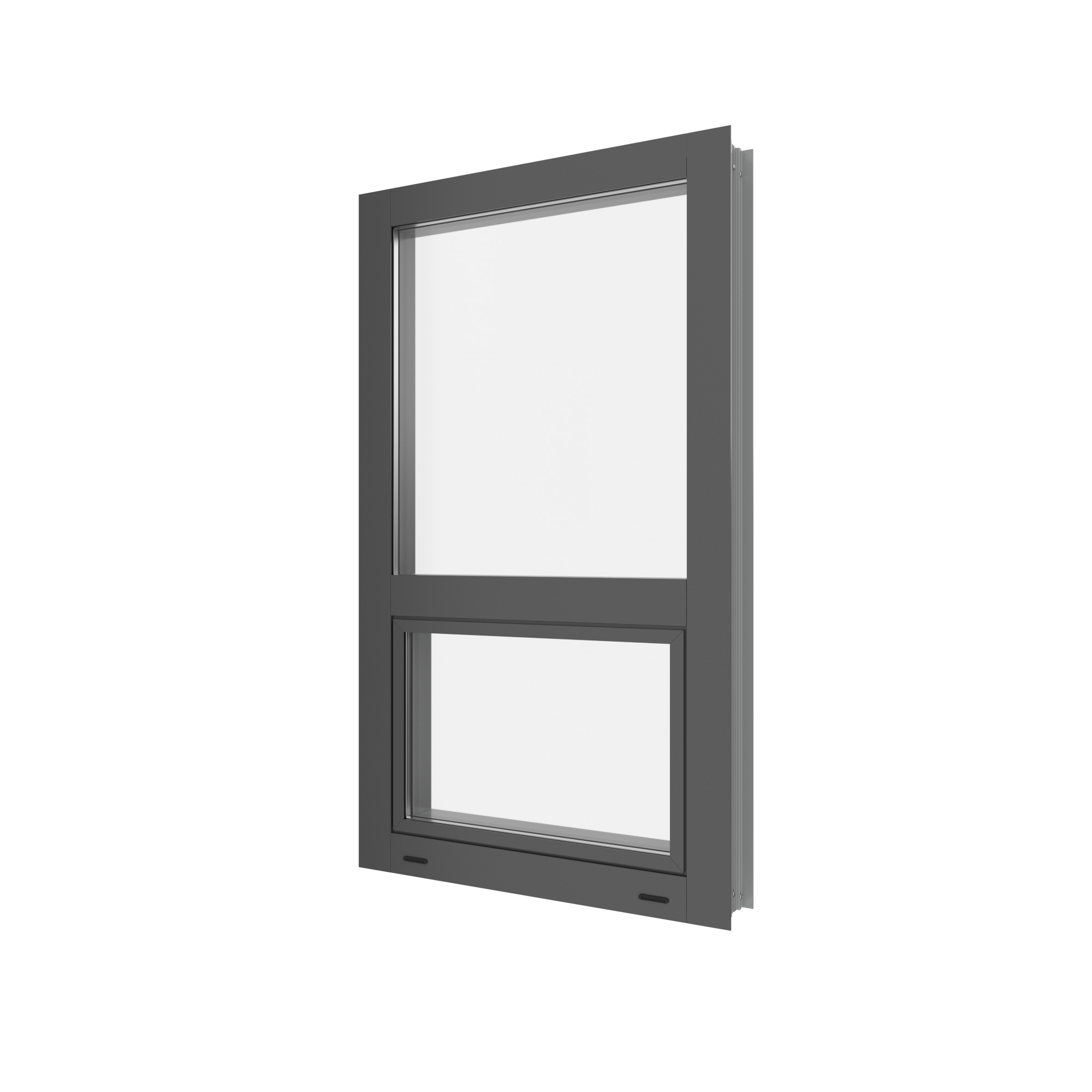

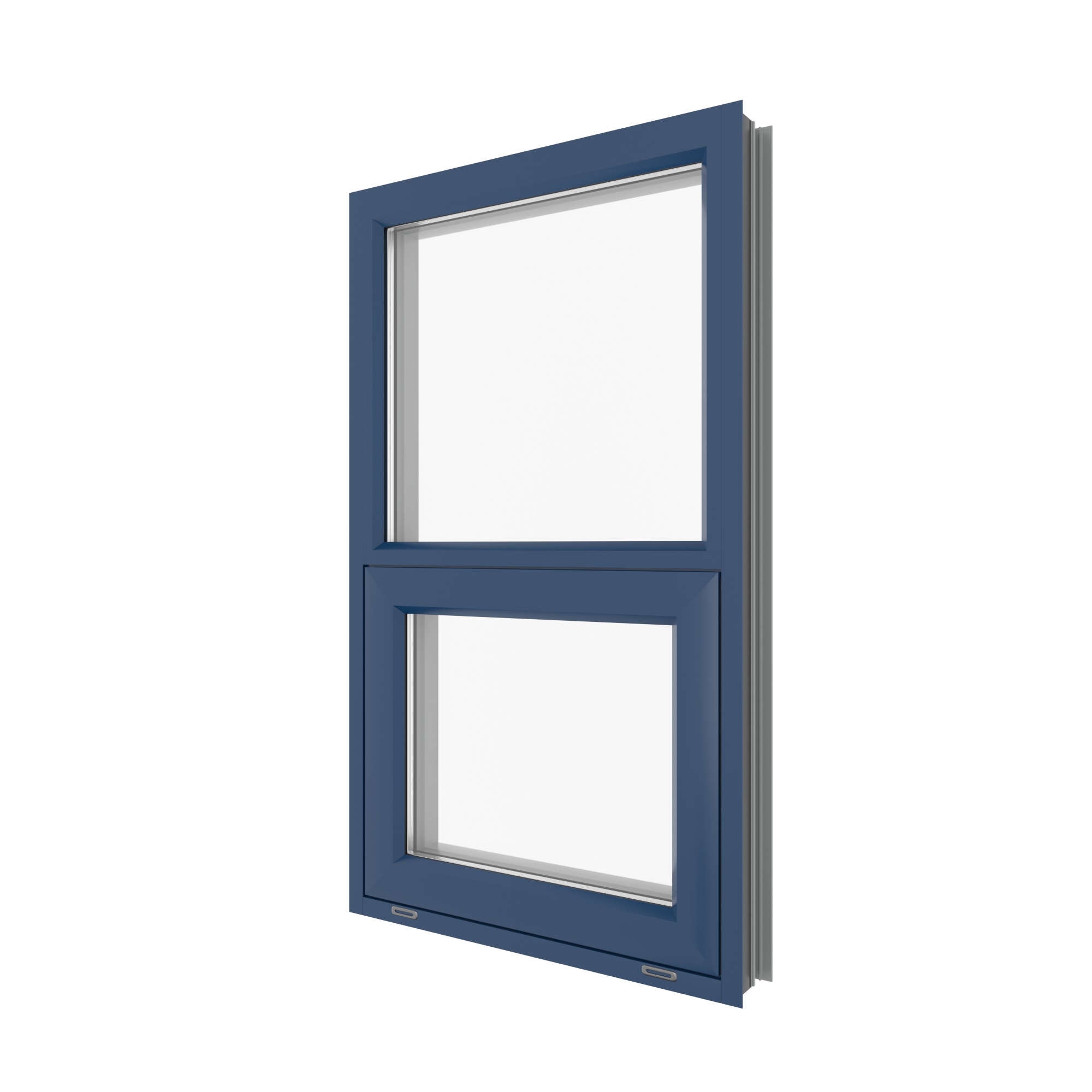

  • Exterior View

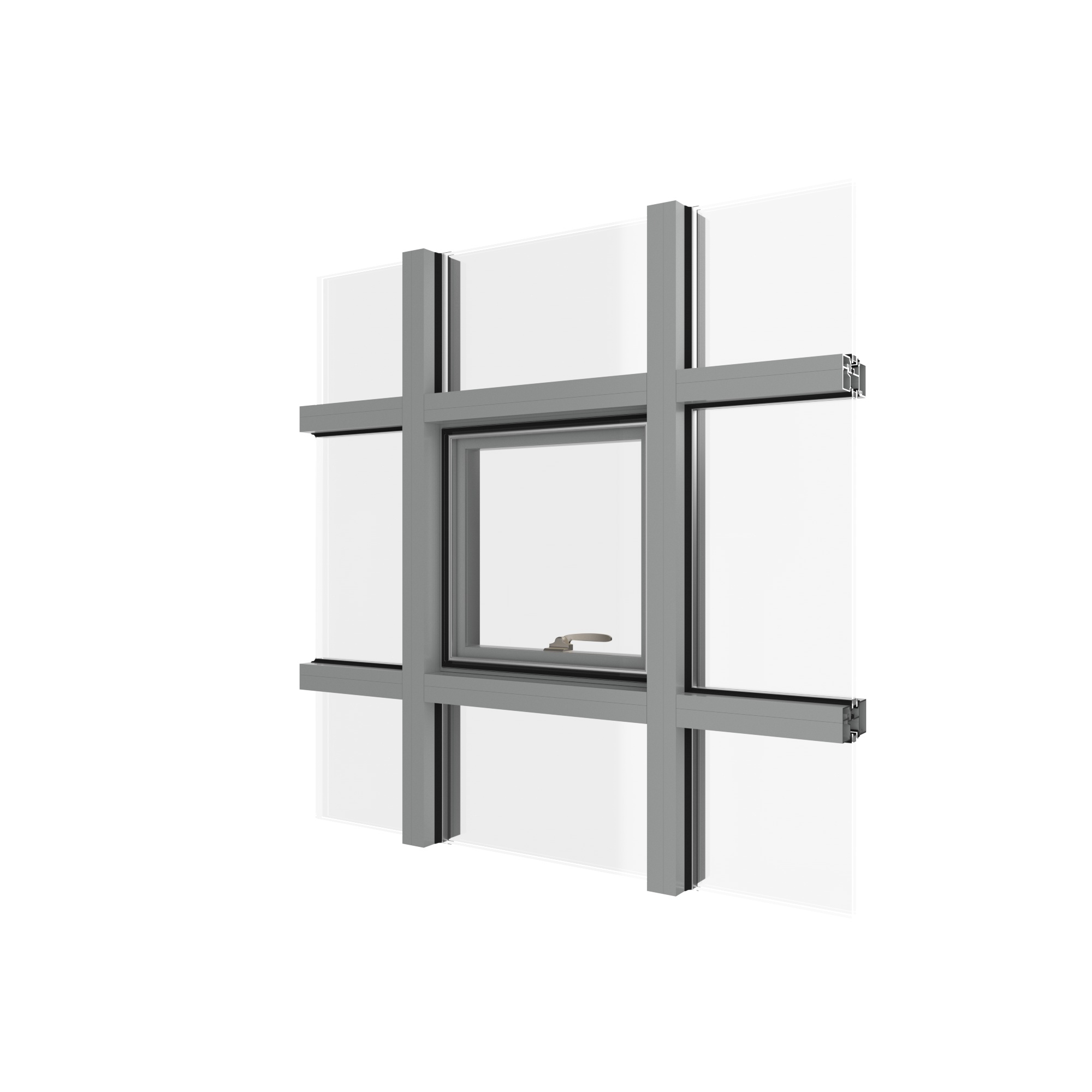

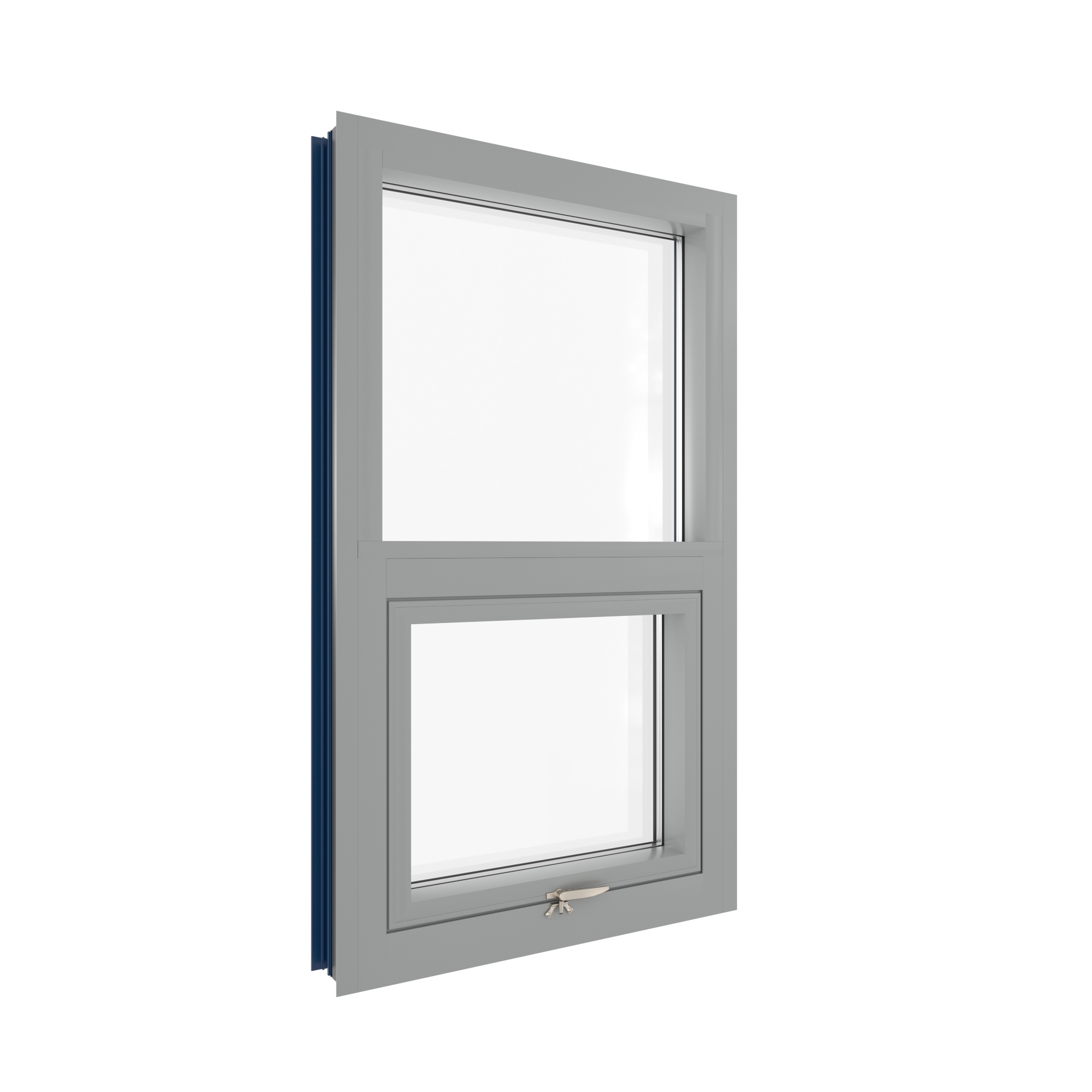

  • Interior View

    Features & Information
  • Standard Features
    • 35 mm thermal struts provide exceptional U-values and dual finish capability
    • Flush vent design with integral bevel provides clean look and protects weather-stripping
    • Wet glazed with structural silicone for maximum seal strength and water resistance
    • Tubular meeting rails and vents for superior structural performance
    • Accommodates up to 2 5/8" glazing infill
    • Concealed 4-bar stainless steel hinges and white bronze cam locks
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Dual glazing with removable access panels (Allows for vandal resistant polycarbonate glazing or integral blinds (5/8" or 1" deep))
    • "Triple" glazing with up to 1 ¼" insulated glass and interior removable access panels
    • Exterior applied or between the lites of dual glazing muntin grids
    • Insect screens (fiberglass, aluminum or stainless steel mesh)
    • Custodial locks, Pivot shoe roto operators (PO only), Pole operated spring catches (PI only)
    • Factory preparation for field applied manual or motorized remote operators
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Limit devices for restricted opening (NYCDOH stamped where applicable)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
3000i Project-Out, Project-In AW-PG100 60 x 144 <0.01 20 100 150 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
59 x 24* Project-Out 0.506 0.480 0.487 0.460 0.463 0.435 0.434 0.410
48 x 72** Project-Out 0.448 0.422 0.421 0.394 0.389 0.360 0.350 0.326
59 x 24 * Project-In 0.496 0.464 0.476 0.442 0.451 0.417 0.423 0.394
48 x 72 ** Project-In 0.443 0.415 0.417 0.388 0.386 0.356 0.345 0.319
47 x 59* fixed 0.418 0.396 0.389 0.366 0.354 0.331 0.311 0.291
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
  • **Based on equal Fixed/PO
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
