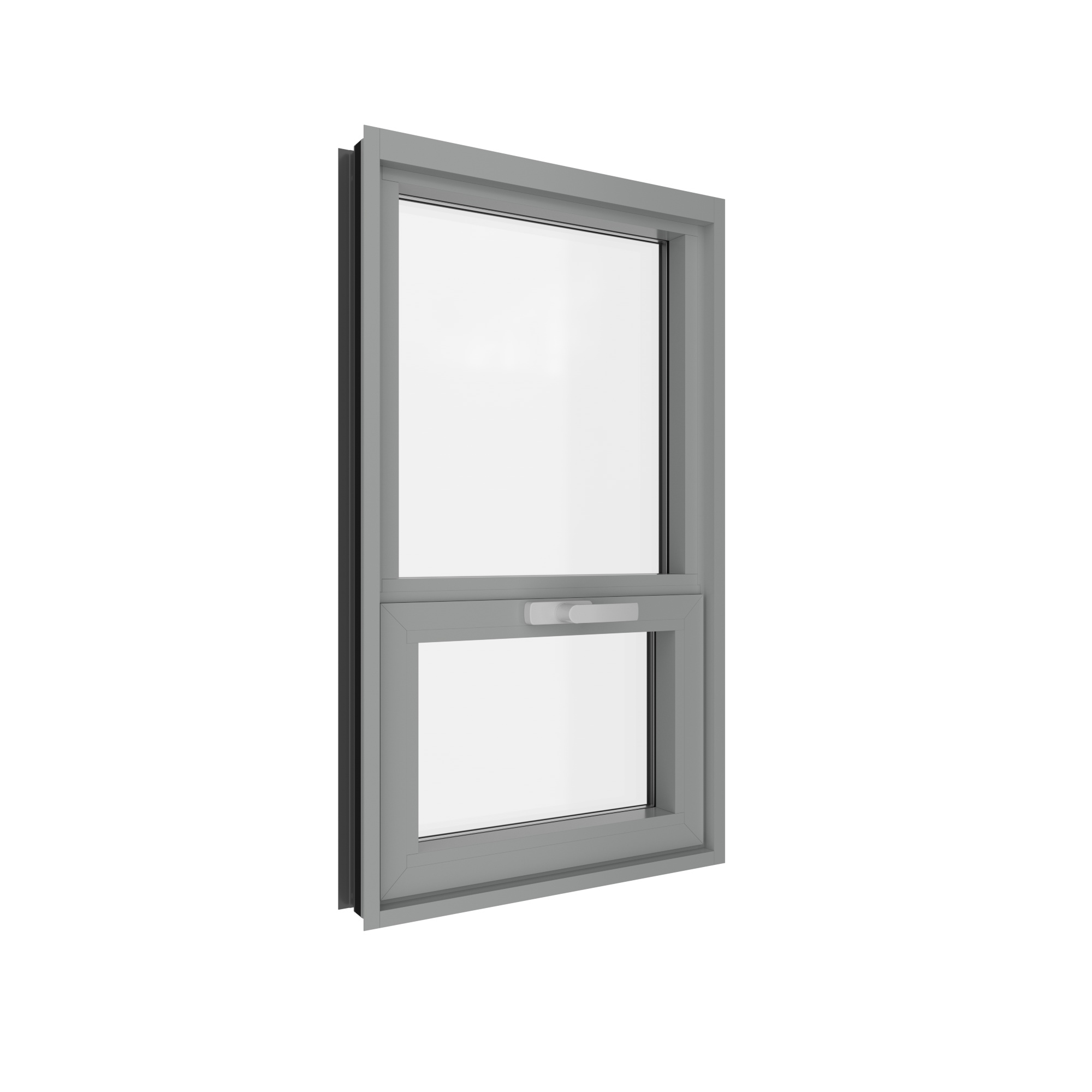

3400i Projected

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Large 35mm thermal struts provide exceptional U-values and dual finish capability
    • Multi-point locks with advanced design Eurogroove hardware
    • Concealed 4-bar stainless steel hinges
    • Flush vents with straight or beveled glazing legs for maximum design flexibility
    • Structural silicone glazing for maximum seal strength and water resistance
    • 3 1⁄2” deep vents accommodate up to 3" glazing infill (2 5/8” with bevel)
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Dual or “triple” glazing with removable access panels
      • Allows for vandal resistant polycarbonate glazing and/or integral blinds
    • Concealed heavy duty Eurogroove hinges allowing vents up to 375 lbs.
    • Extended length handles for reduced operating force in ADA applications
    • Offset glazing to replicate hung windows
    • Exterior applied or between the lites of dual glazing muntin grids
    • Insect screens (face applied or via integral track (inswing only) eliminating exposed clips)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Key operated limit arms or custodial locks
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Contact Us
Lets Get Started
Performance Data1
Series Operation AMAA
Rating 		Test Size
(inches) 		Air (cfm/ft2)
@ 6.24 psf 		Water
(psf) 		Design Pressure
(psf) 		Structural Overload
(psf) 		OITC U-Factor
(BTU/HR/FT2/F)
3400i Project-Out AW-PG100 60 x 108 0.10 15 100 150 Consult AWM See Thermal
3400i Project-In AW-PG100 60 x 108 <0.01 15 100 150 Consult AWM See Thermal
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
59 x 24* Project-In 0.505 0.479 0.484 0.458 0.460 0.432 0.430 0.406
48 x 72 ** Project-In 0.446 0.422 0.420 0.394 0.388 0.361 0.345 0.322
59 x 24 * Project-Out 0.540 0.514 0.520 0.493 0.496 0.468 0.467 0.443
48 x 72 ** Project-Out 0.460 0.434 0.434 0.407 0.403 0.375 0.362 0.338
47 x 59* fixed 0.423 0.402 0.394 0.372 0.360 0.337 0.316 0.296
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
  • **Based on equal Fixed/PO
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
