3750i Casement

  • Exterior View

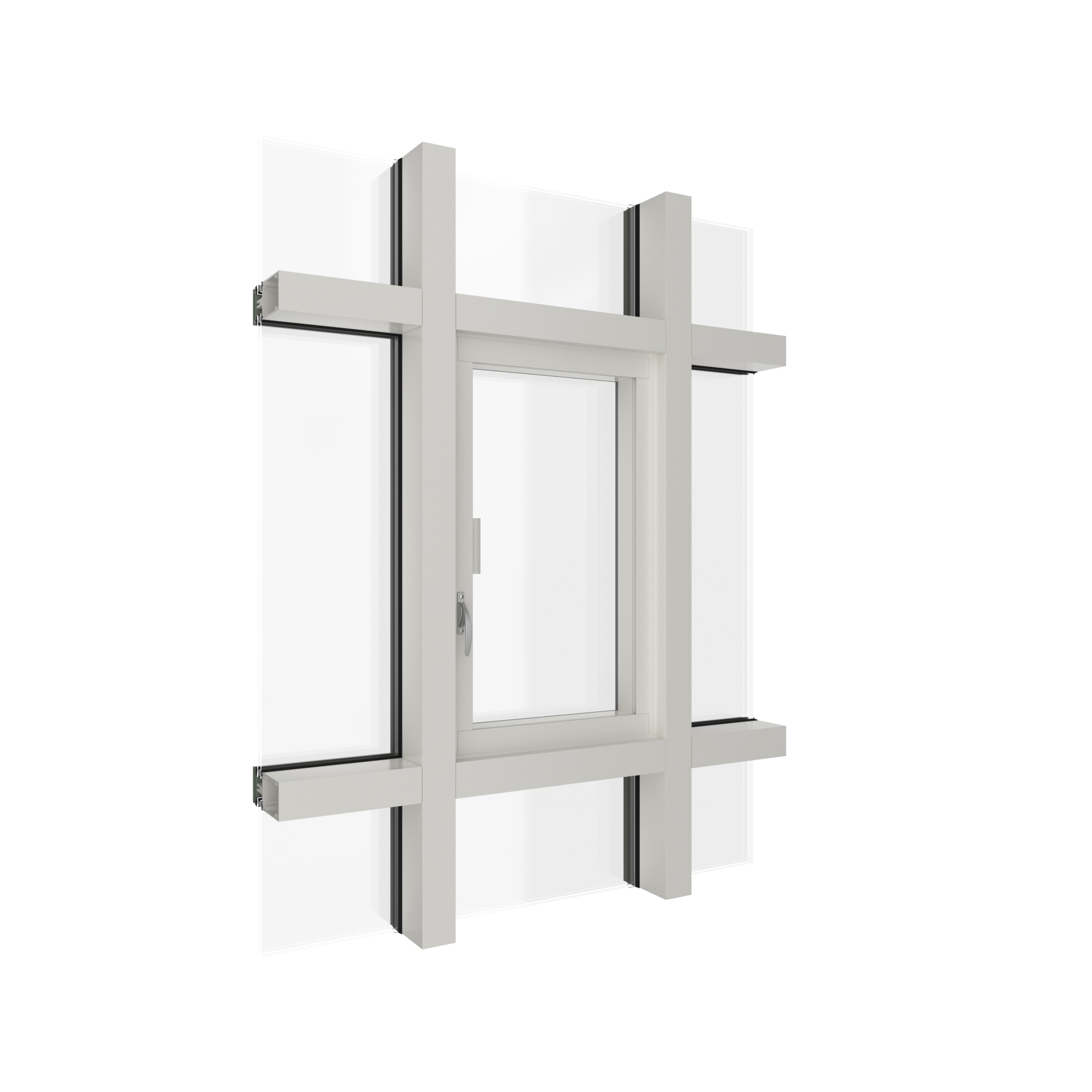

  • Interior View

    Features & Information
  • Standard Features
    • Concealed frame makes curtainwall vents and fixed lites virtually indistinguishable from the exterior
    • Silicone structural glazing for maximum structural integrity
    • Superior thermal strut thermal barrier at frame
    • Integral glazing frame for easy installation into 1” pockets
    • .125” minimum wall thickness
    • Concealed 4-bar stainless steel hinges and white bronze cam locks
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Multi-point locks
    • Custodial hardware
    • Between the glass or true muntins
    • Insect screens (fiberglass, aluminum or stainless steel mesh)
    • Limit devices (NYCDOH stamped where applicable)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
3750i Outswing (Concealed Vent) AW-PG150 36 x 60 <0.01 25 150 225 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
24 x 59* 0.635 0.617 0.608 0.590 0.576 0.557 0.544 0.525
36 x 60 0.563 0.550 0.534 0.520 0.498 0.484 0.462 0.448
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
