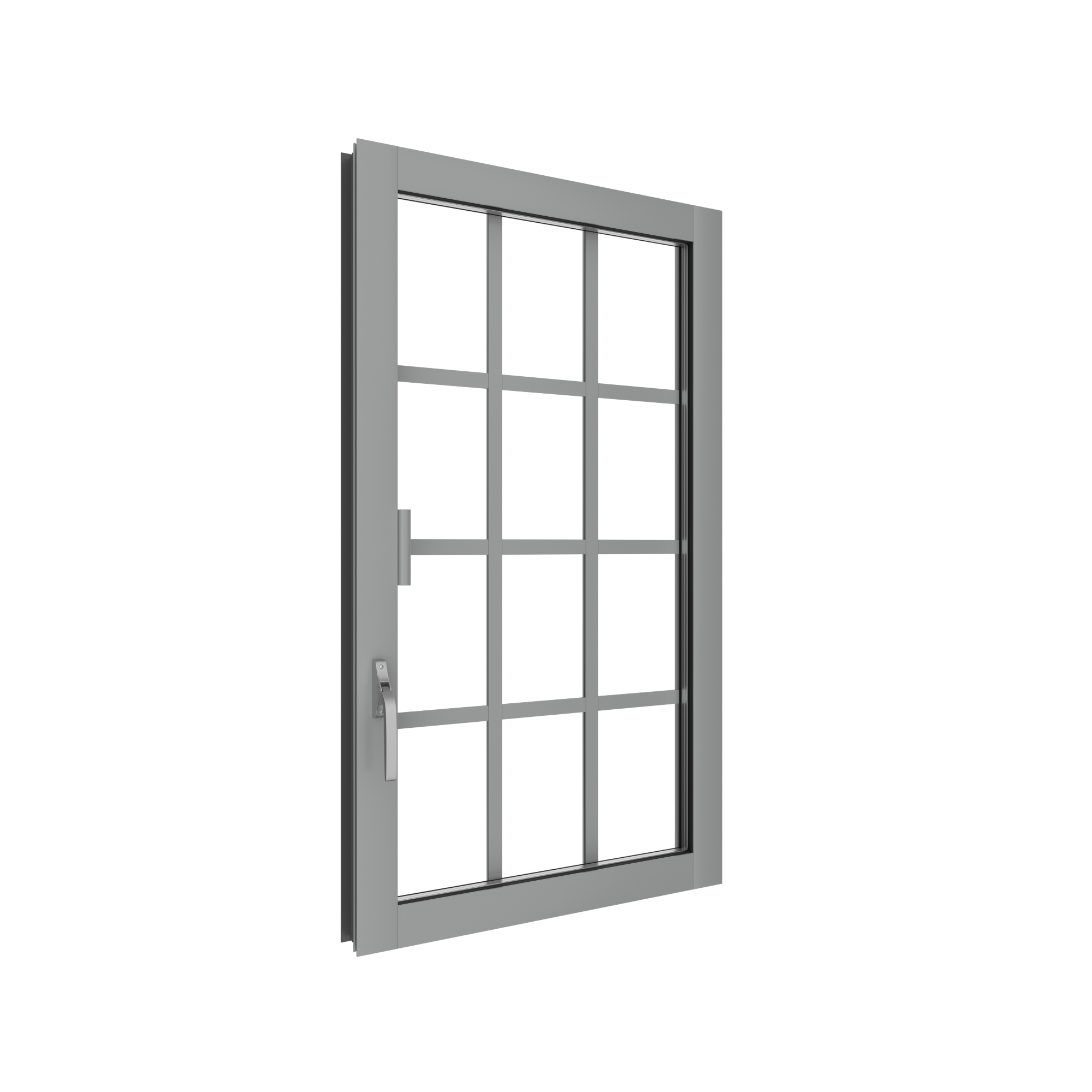

3900i Casement

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Thermal strut thermal barrier at frame for enhanced performance and dual finish capability
    • Small sightline and deep integral bevel to perfectly suit historic steel replica applications
    • Equal sightline makes vents and fixed lites virtually indistinguishable from the exterior
    • Wet glazed with structural silicone for maximum seal strength and water resistance
    • Tubular meeting rails and vents with 0.125” wall thickness for superior structural performance
    • Aluminum butt hinges for increased vent weight capacity and white bronze cam locks
    • 1 1/8” insulated glass for increased thermal performance and sound attenuation
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • True, exterior applied ¾” deep or between the glass muntin grids
    • Insect screens (fiberglass, aluminum or stainless steel mesh)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Multi-point locks, custodial hardware, roto-operators (outswing only), concealed 4-bar stainless steel hinges
    • Limit devices (NYCDOH stamped where applicable)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
3900i Outswing AW-PG150 36 x 60 <0.01 25 150 225 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
24 x 59* casement 0.550 0.538 0.526 0.514 0.497 0.484 0.450 0.441
36 x 60 casement 0.498 0.489 0.471 0.461 0.438 0.428 0.390 0.383
47 x 59* fixed 0.420 0.401 0.392 0.372 0.358 0.337 0.314 0.296
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size

Typical Details

Select which format you would like to download:

PDF CAD

Coming Soon

This content has not been uploaded yet, but is coming soon. If you have any questions about this product please feel free to contact us.

Contact Us

We can test our windows to AAMA ratings that are amongst the highest in the country. Our total manufacturing control gives you total creative control.
