4750i Single Hung

  • Exterior View

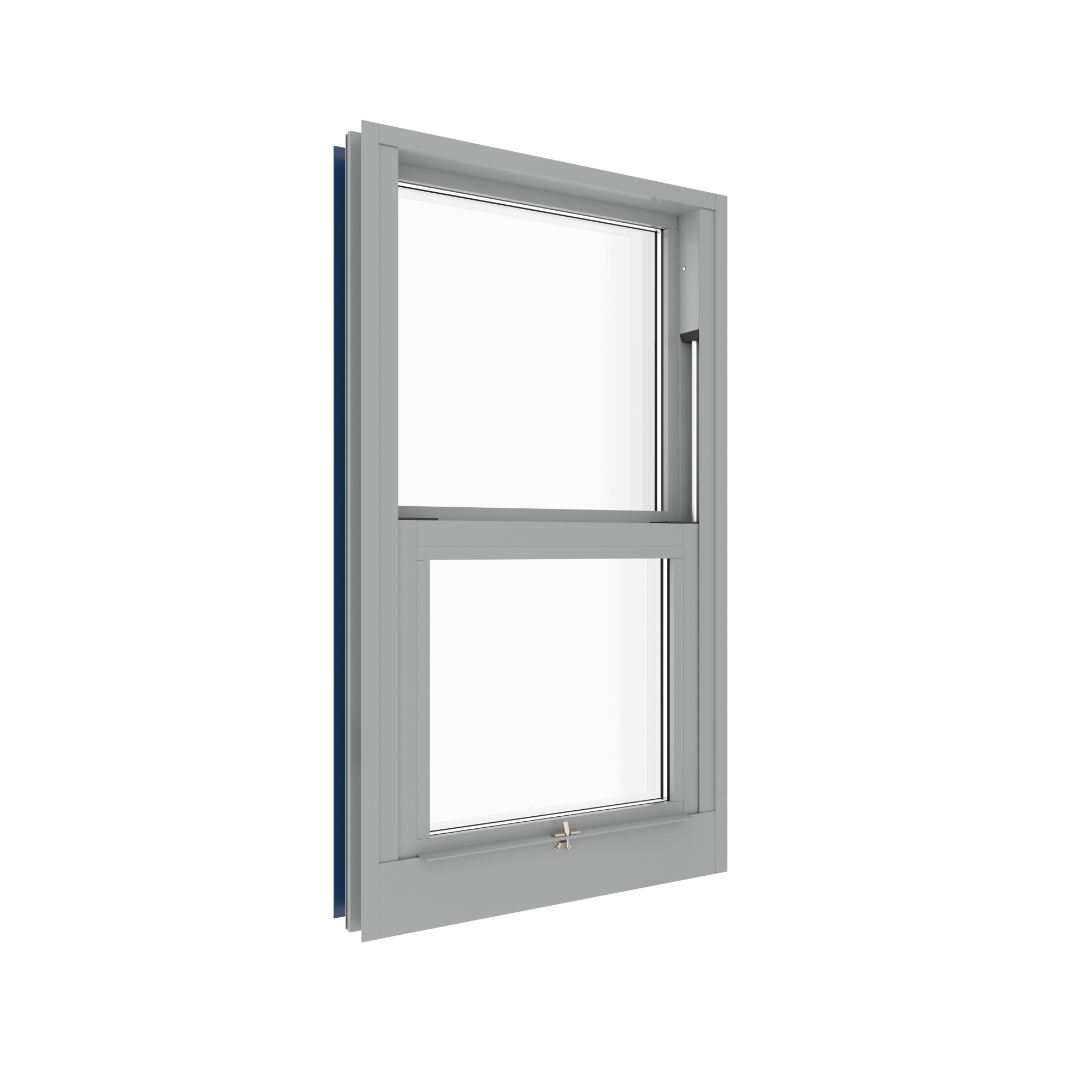

  • Interior View

    Features & Information
  • Standard Features
    • Superior thermal strut for maximum thermal performance and dual finish capability
    • Side Load design with captured sash provides maximum strength and security
    • Sash removable for maintenance by authorized personnel
    • Wet glazed with structural silicone for maximum seal strength and water resistance
    • Available with straight or beveled glazing legs for aesthetic design flexibility
    • Class 5 high performance balances lift 70% of the sash weight
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Dual glazing with removable access panels
      • allows for vandal resistant polycarbonate glazing
      • allows for 5/8" deep integral blinds (straight leg only)
    • Class 6 balances for reduced operating force and 10-year warranty
    • True, exterior applied or between the lites of dual glazing muntin grids
    • 15 psf sill for increased water resistance
    • Half insect screens (fiberglass, aluminum or stainless-steel mesh)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Limit devices for restricted opening (NYCDOH stamped where applicable)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Contact Us
Lets Get Started
Performance Data1
Series Operation AMAA
Rating 		Test Size
(inches) 		Air (cfm/ft2)
@ 6.24 psf 		Water
(psf) 		Design Pressure
(psf) 		Structural Overload
(psf) 		OITC U-Factor
(BTU/HR/FT2/F)
4750i Side Load AW-PG110 60 x 99 0.24 12 110 165 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA/101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
47 x 59* 0.47 0.45 0.45 0.43 0.42 0.40 0.37 0.36
48 x 72 0.45 0.44 0.43 0.41 0.40 0.38 0.35 0.34
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
