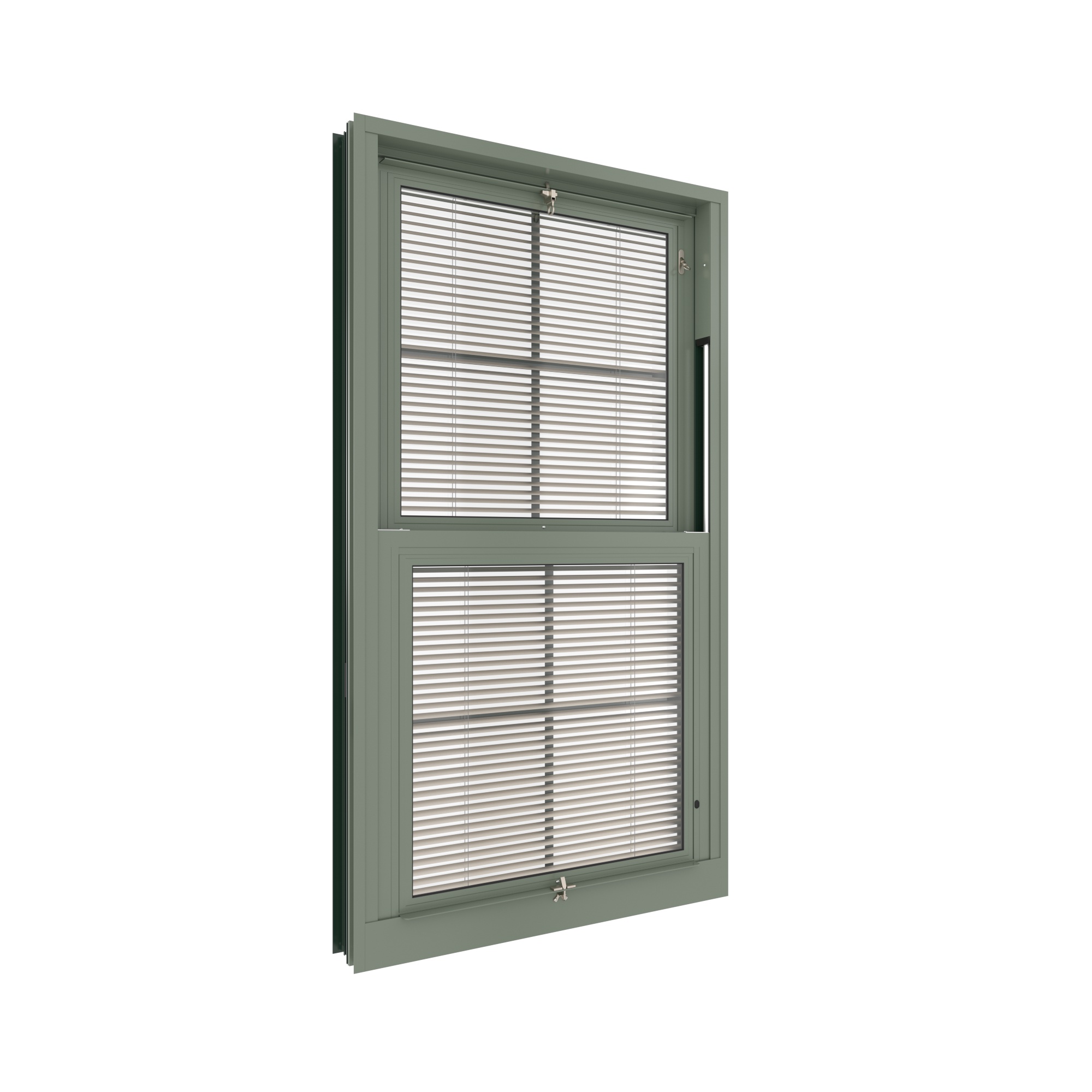

8000i Double Hung

    Features & Information
  • Standard Features
    • 2 1⁄2” deep sash allow for exterior applied muntins with 5/8” deep integral blinds
    • Thermal strut thermal barrier for enhanced performance and dual finish capability
    • Side Load design with captured, removable sash allows for cleaning by maintenance personnel and maximum strength and security making it ideal for educational applications
    • Available with straight or beveled glazing legs for aesthetic design flexibility
    • Class 5 high performance balances lift 70% of the sash weight
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Dual glazing with removable access panels
      • Allows for vandal resistant polycarbonate glazing
      • Allows for 5/8” deep integral blinds
    • Class 6 balances for increased weight capacity, enhanced lift assistance and 10-year warranty
    • True, exterior applied or between the lites of dual glazing muntin grids
    • 15 psf sill for increased water resistance or 10 psf sill for decreased sightline
    • Full or half insect screens (fiberglass, aluminum or stainless-steel mesh)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Limit devices for restricted opening (NYCDOH stamped where applicable)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
8000i Side Load AW-PG120 60 x 99 0.17 12 (10, 15) 120 180 Consult AWM See Thermal
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
47 x 59* 0.583 0.558 0.560 0.534 0.533 0.504 0.497 0.473
48 x 72 0.558 0.535 0.533 0.510 0.504 0.479 0.467 0.445
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
