8090i Fixed

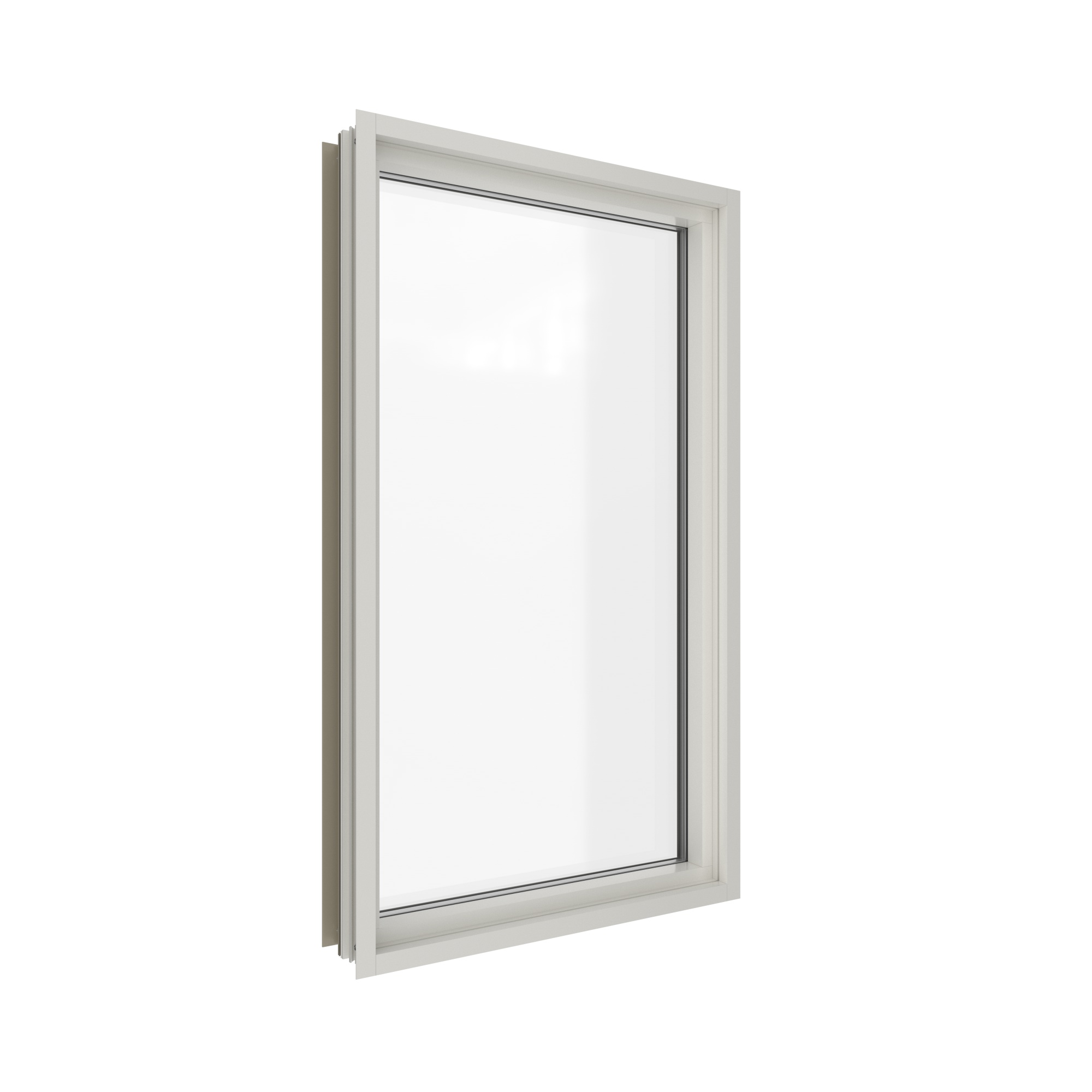

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • Thermal strut thermal barrier for enhanced performance and dual finish capability
    • Wet glazed with structural silicone for maximum seal strength and water resistance
    • Mate with operable windows and doors as follows:
      • 8000i DH
    • Available with straight or beveled frames for design flexibility
  • Optional Features
    • Dual glazing with removable access panels (Allows for vandal resistant polycarbonate glazing or integral blinds)
    • True, exterior applied or between the lites of dual glazing muntin grids (Varies based on series – Consult AWM)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
8090i Fixed AW-PG150 60 x 99 <0.01 25 150 225 Consult AWM See Below
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
47 x 59* 0.455 0.431 0.424 0.399 0.388 0.361 0.343 0.320
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size
