3000i Casement

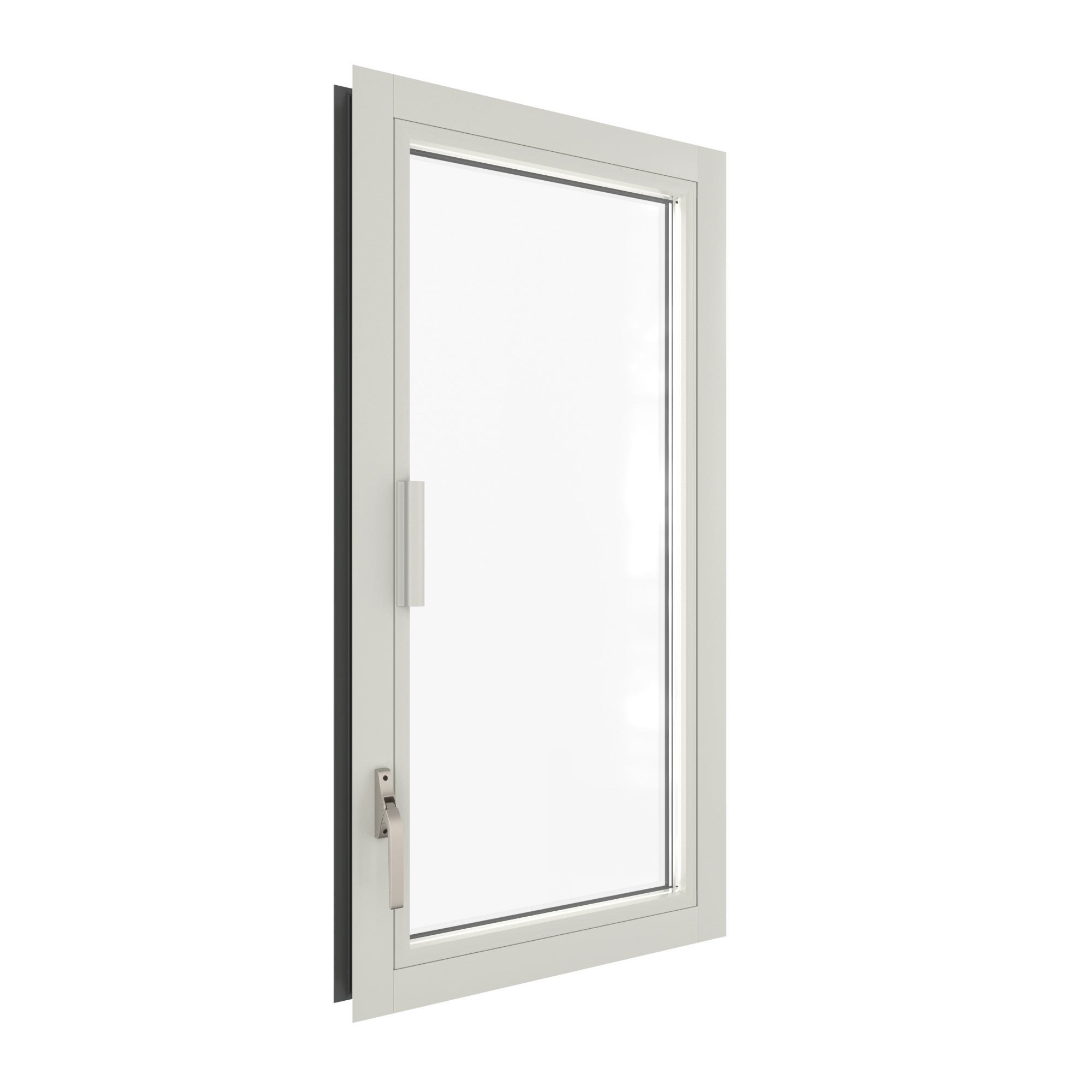

  • Exterior View

  • Interior View

    Features & Information
  • Standard Features
    • 35mm thermal struts provide exceptional U-values and dual finish capability
    • Flush vent design with integral bevel provides clean look and protects weather-stripping
    • Wet glazed with structural silicone for maximum seal strength and water resistance
    • Tubular meeting rails and vents for superior structural performance
    • Aluminum butt hinges for increased vent weight capacity and white bronze cam locks
    • Accommodates up to 2 5/8" glazing infill
    • AAMA 2603/2604/2605 painted or AAMA 611 anodized finishes
  • Optional Features
    • Dual glazing with removable access panels
      • Allows for vandal resistant polycarbonate glazing
      • Allows for integral blinds (5/8" or 1" deep)
    • "Triple" glazing with up to 1 ¼" insulated glass and interior removable access panels
    • Exterior applied or between the lites of dual glazing muntin grids
    • Insect screens (fiberglass, aluminum or stainless steel mesh)
    • Hurricane Windborne Debris Impact Resistance (Large Missile)
    • Multi-point locks, custodial hardware, roto-operators (outswing only), concealed 4-bar stainless steel hinges
    • Limit devices (NYCDOH stamped where applicable)
  • Performance Charts
  • Downloadable Details, Data Sheet + Specification
We have you covered

Architects must balance longevity, cost, risk and beauty while controlling the effects of temperature, water, wind, acoustics and storm-driven projectiles. Architects collaborate best with manufacturers driven by an equal passion for balance and control.

Performance Data1
Series Operation AMAA
Rating
Test Size
(inches)
Air (cfm/ft2)
@ 6.24 psf
Water
(psf)
Design Pressure
(psf)
Structural Overload
(psf)
OITC U-Factor
(BTU/HR/FT2/F)
3000i Outswing AW-PG140 36x60 <0.01 25 140 210 Consult AWM See Thermal
3000i Inswing AW-PG95 36x60 <0.01 25 95 142.5 Consult AWM See Thermal
  • 1 Based on independent certified laboratory testing per AAMA/WDMA/CSA 101/I.S.2/A440. Field results will vary based on size, test methods, accessories & conditions.
Thermal Performance Chart1
Window Size (Inches) CENTER OF INSULATED GLASS U-FACTOR/SPACER TYPE (“Alum.” = Aluminum, “Warm” = Warm Edge) 2
0.33/Alum. 0.33/Warm 0.29/Alum. 0.29/Warm 0.24/Alum. 0.24/Warm 0.20/Alum. 0.20/Warm
24 x 59* Outswing 0.457 0.417 0.434 0.393 0.407 0.364 0.370 0.331
36 x 60 Outswing 0.425 0.394 0.399 0.367 0.368 0.334 0.327 0.297
24 x 59* Inswing 0.493 0.461 0.473 0.440 0.450 0.415 0.418 0.389
36 x 60 Inswing 0.454 0.429 0.430 0.404 0.401 0.375 0.365 0.342
47 x 59* fixed 0.418 0.396 0.389 0.366 0.354 0.331 0.311 0.291
  • 1Based on independent certified simulations in accordance with NFRC 100
  • 2Consult AWM for additional configurations
  • *Designates NFRC Gateway size
Thermal Performance Chart1
Window Size WHOLE WINDOW U-FACTOR USING ARGON FILLED SPUTTER COAT LOW-E #2 INSULATED GLASS WITH A WARM EDGE SPACER2 2
  • 1 Based on independent certified simulations in accordance with NFRC 100
  • 2 Consult AWM for additional configurations
  • * Designates NFRC Gateway size

Typical Details

Select which format you would like to download:

PDF CAD

Coming Soon

This content has not been uploaded yet, but is coming soon. If you have any questions about this product please feel free to contact us.

Contact Us

We can test our windows to AAMA ratings that are amongst the highest in the country. Our total manufacturing control gives you total creative control.
